5A ACS712 Current Sensor

5A ACS712 Current Sensor

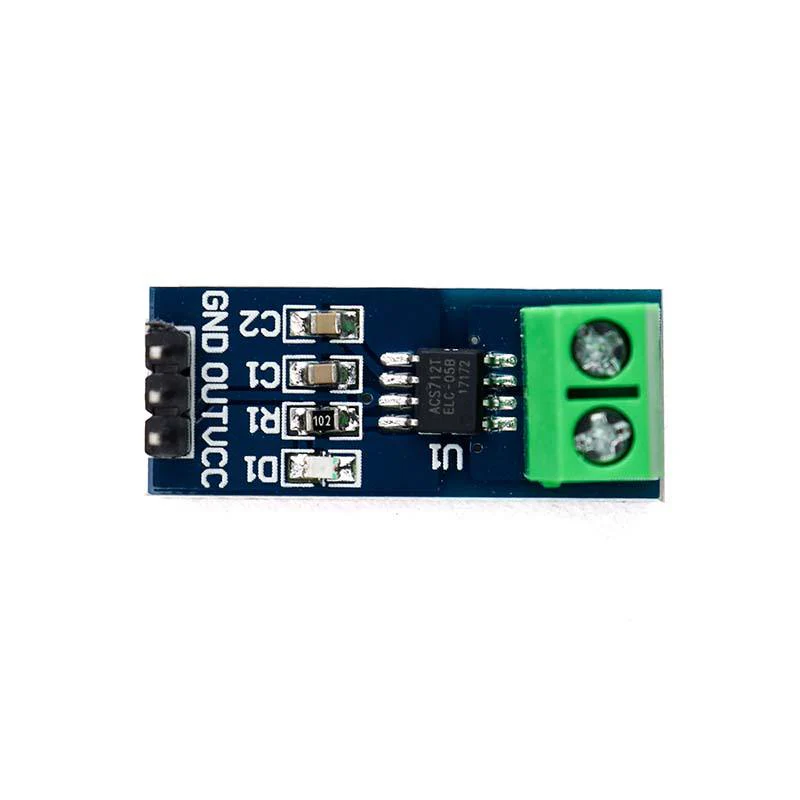

The 5A ACS712 range Current Sensor Module consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.

Connection Diagram:

?read our blog explaining  Interfacing acs712 current sensor with Arduino, which provides information about the ACS712 current sensor, discussing its features, working principle, hardware requirements, and applications.
