Witty Fox Smart Plug - Digital Relay

Witty Fox Smart Plug - Digital Relay

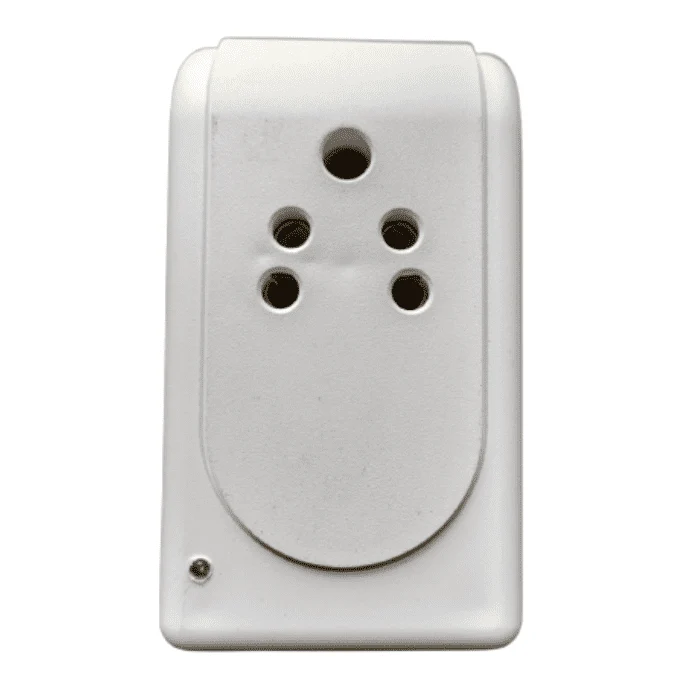

Smart Plug is a 240V AC plug that can be switched on/off with a 0-5V output signal, from microcontrollers such as the Arduino. The Smart Plug can be used for various applications like IoT giving the ability to turn on/off any regular appliances with a microcontroller by simply giving the appropriate signal based on programmed conditions.

Connection Details:

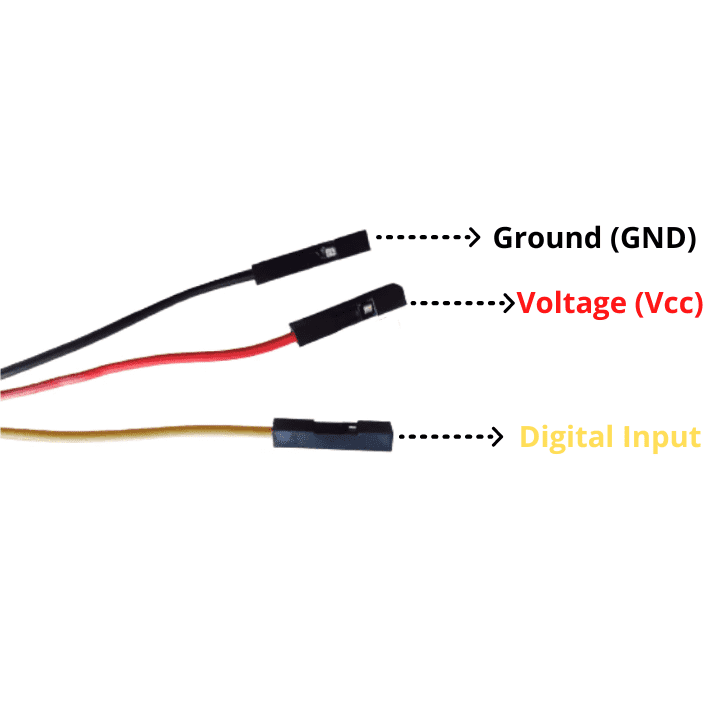

The Smart plug comes with four wires

• An AC cable - to be connected to a regular wall outlet that is always turned on
• Red jumper wire - to be connected to the 5V VCC pin of the microcontroller
• Black jumper wire - to be connected to the GND pin of the microcontroller
• Yellow jumper wire - to be connected to a GPIO pin of the microcontroller to control the switch

To turn on the smart plug, the GPIO pin connected to the yellow jumper must be set to logic LOW or GND. To turn off the smart plug, the GPIO must be set to logic HIGH or 5V.

Explore a wide range of  Witty Fox Products on Robocraze

Applications:

The Smart Plug can be used to turn on/off various devices and home appliances, helping you turn a regular device into an IoT-like product. Some examples are mentioned below.

• Turning the water pump on/off based on the water level in the tank.
• Turning the irrigation pump on/off based on the soil moisture.
• Turning the light on/off based on the ambient outdoor light/time.
• Turning the fan on/off based on the temperature of the room.
